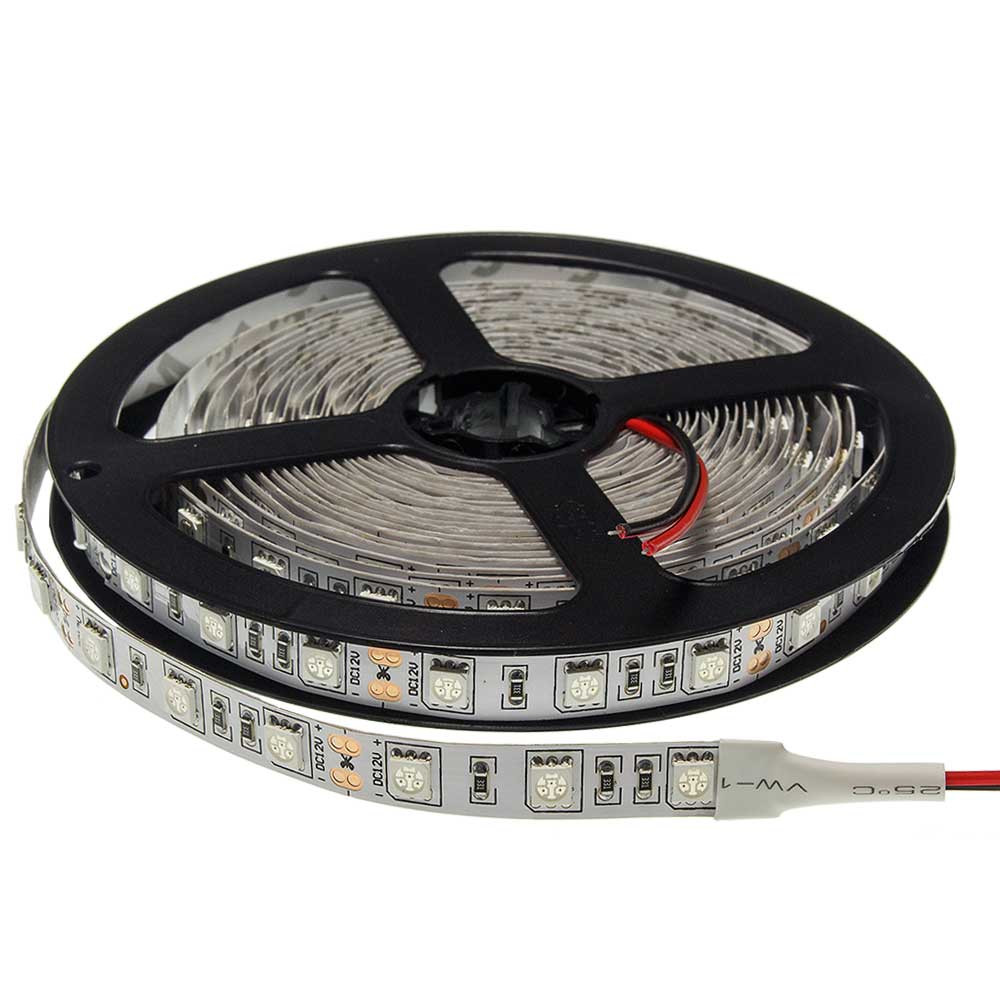

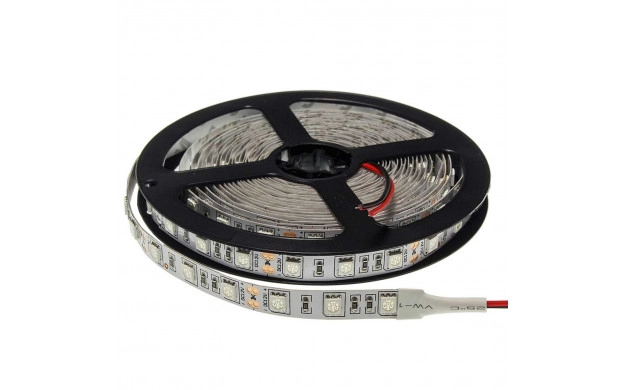

LED Strip 5050 Non-Waterproof Home Edition
LED Strip 5050 Non-Waterproof Home Edition
SKU: 4223
Power
14.4W/m
Light color
Red
Send quotation
Your Request
The site registration allows each distributor to have information on the prices and the discounts they use.
Product Name:
*
Quantity:
*
SKU:
*
Your Name:
*
Your Email:
*
Message:
*
Specifications
Downloads
Datasheet & QR Code
Brand
Optonica
Product Code
ST5050-A1
Power
14.4W/m
Energy Consumption
14.4/m kWh/1000h
Input voltage
DC12V
Flux
720lm
FLUX per watt
50lm/W
IP
20
Dimmable
Yes
Light Color
Red
EAN Code
3800156642232
Energy Efficiency Label
G
Beam angle
120º
Power Factor
0.5
On/Off Cycles
25 000x
Instant On
0.1s
Material
Flex PCB
Operating Frequency
50-60 Hz
Temperature
-20°C / +40°C
Ra ≥
80
Life span
25 000 Hours
Weight of Product
90 gr.
LED Type
SMD
LEDs/m
60
Power per meter
14.4W/m
Roll
5 m
Lumen maintenance at end of service life
70%
Size of product
5000x10x2 mm
Size of package
235x210x5 mm
Size of Box
380x290x160 mm
Items per pack
1
Items per box
200
Warranty
2 Years
Certificates
Strips-LVD.pdf
EU Label
4223-b.pdf
User Manual
User-Manual-single-color-EN-DE.pdf
User-Manual-single-color-BG.pdf
Download datasheet
Download QR Code
